Chisel Holder

Chisel Holders from BMC

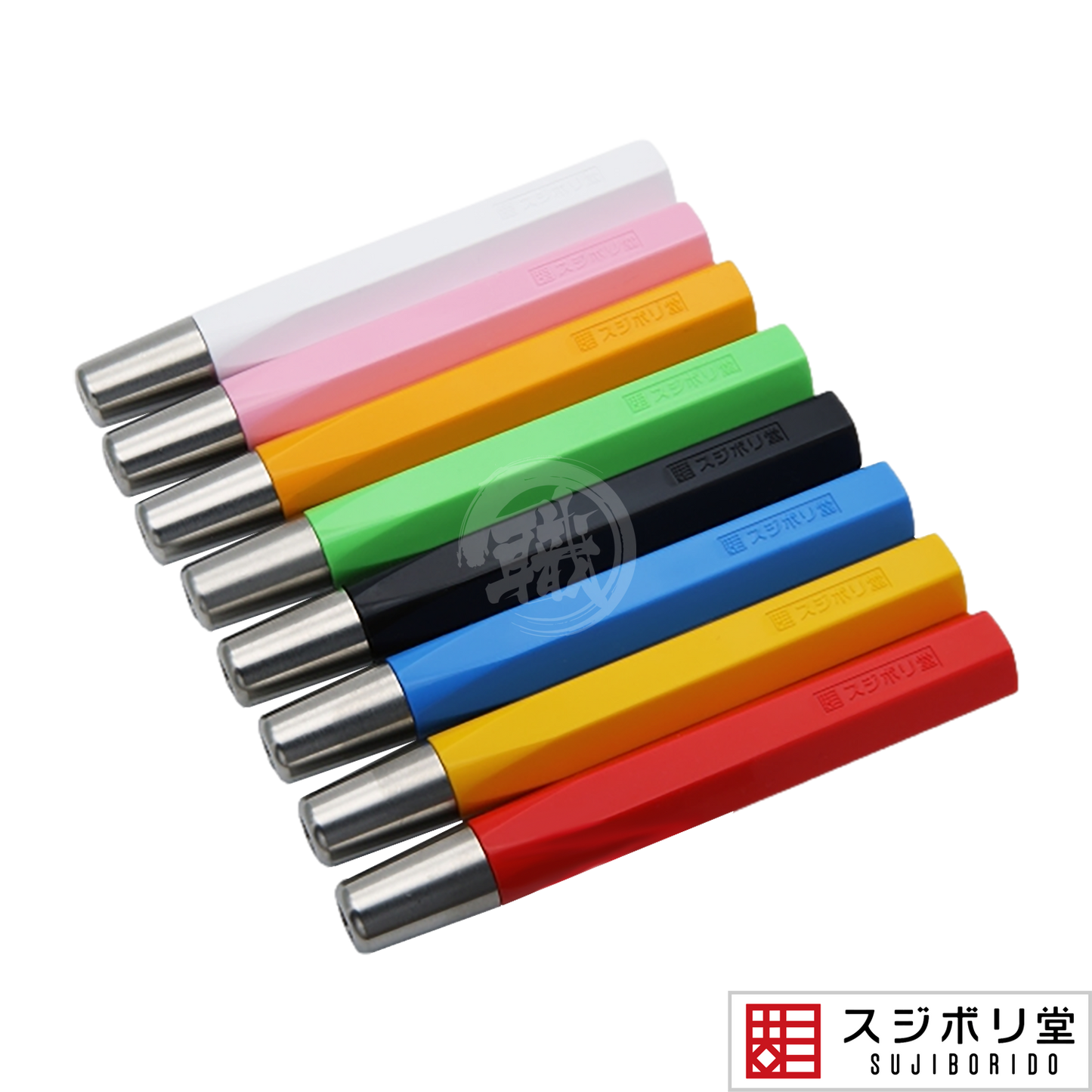

This is the BMC Chisel Holder (with protective cap).

It provides improved grip and enhances maneuverability, making it easier to handle and operate.

Specifications

• Total Length: Approx. 102mm
• Width: Approx. 14mm

Usage Instructions:

• Since the BMC Chisel is handmade, there may be slight variations in the size of the handle.
• If there is any wobbling even after tightening the metal cap, adjust the thickness by wrapping cellophane tape around the chisel.
• If it's too tight, you can shave down the protruding part of the tip or file the interior to fit.

The maximum chisel size that can be mounted is:

• Width: Approx. 5.0mm
• Thickness: Approx. 2.6mm

When removing and reattaching the metal cap, always check for vertical alignment before tightening the cap.

• If it feels too tight, do not force it. Instead, loosen it slightly before tightening again.
• Forcing it in a tilted position will damage the ABS resin screw threads, rendering it unusable.

The protective cap comes with size-specific seals included.

Loosen the cap at the tip before inserting it.

There is no need to remove the cap completely from the tip.

Handle made of plastic

Tightener made of metal

Fits BMC Chisels

[ ! ] Fits SAB Chisels [Tight]
